1
Configure
Select material, enter dimensions and labeling, pick quantity, and choose lead time.
Built from your known dimensions.
Configure, price, and purchase custom orifice plates in minutes.
Instant pricing, selectable lead times, and shipping options—then proceed directly to checkout or generate a PDF quote for purchasing.
What you get
- PDF drawing for confirmation
- Rapid manufacturing
- Prompt shipping
- Contact us about material certification and inspection documentation
Purchasing workflow
Configure a plate and immediately see pricing, selectable lead times, and shipping options—quoted transparently.
Single plate / ready to buyProceed directly to checkout and complete your purchase.
Project order / multiple platesBuild a cart for larger projects. Need internal approval? Generate a PDF quote and forward it to purchasing. Contact us with the quote number when you are ready to proceed. Quotes show a validity of up to 30 days; online prices are revalidated before checkout.
Lead time and shipping selections are reflected directly in the quote and checkout—no surprises.
Having trouble loading the configurator? Open the configurator directly.
How it works
2
Quote
Instant pricing is displayed.
3
Purchase
Buying one plate? Go straight to purchase and pay. Need multiple plates for a larger project? Build a cart before checking out. Need to pass this through purchasing? Generate a PDF quote for purchasing and contact us with its quote number when you are ready to proceed. Review the current configuration and price before online checkout.
4
Confirmation
You’ll receive an order confirmation with the exact PDF drawing. Review and approve the attached drawing to confirm the dimensions and options for manufacture; your approval records the order-in-production state.
5
Shipping
Fulfillment and shipping follow drawing approval. Contact us for shipping status and tracking information when available.
For maintenance, engineering, and purchasing
What information is needed to price an orifice plate?

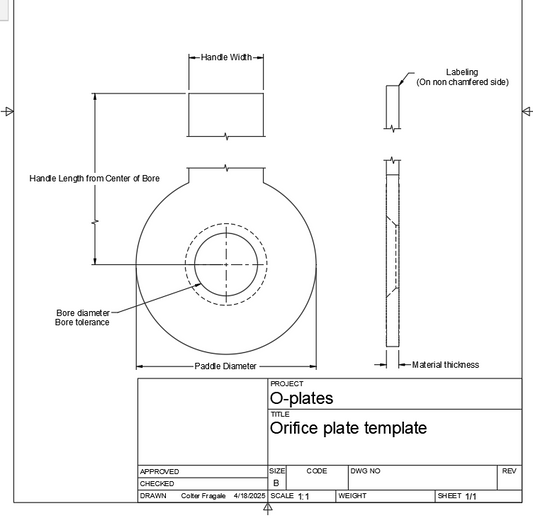

Bring the known material, nominal thickness, plate outside diameter, bore diameter, handle dimensions, bore tolerance, quantity, marking requirements, and preferred lead time. Available choices are shown as you build the quote.
Orifice plate ordering FAQ
Can I buy an orifice plate online?
Yes. Configure a supported plate, review its price, and continue to secure checkout. Multi-plate carts and PDF quotes are available for project purchasing.
What materials are currently available?
O-Plates offers 304 stainless steel, 316 stainless steel, and carbon steel in the material and thickness combinations shown while configuring your plate.
Can O-Plates make a replacement plate?
Yes, when you have the known dimensions and requirements needed by the configurator. Enter the existing plate or approved-print dimensions and review the generated configuration drawing.
What documentation is available?
You can generate a PDF quote and receive a confirmation drawing with your order. Contact us before ordering about material certification and inspection documentation requirements.
How quickly can a plate ship?
Select from the lead-time options shown while configuring your plate. Your selected lead time is reflected in the quote and checkout. Carrier transit is separate from manufacturing lead time.
What if I need help selecting the bore or specification?
Contact O-Plates before ordering. The self-service configurator prices known requirements; it is not an application-engineering or flow-sizing service.
Start with the dimensions you already know.
Questions or special requirements can be reviewed before you order.
